5055-HD ERIC Residual Ink Tester for Paper Packaging Testing

Brand Name : Haida

Model Number : 5055-HD

Certification : CE、ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 300 Sets per Month

Delivery Time : 20 days after order confirmed

Packaging Details : each set protected with resin fiber and PP film, then put into Strong wooden case with operation man

Function : compression test,Paper Tube Compressive Strength Test,Burst tester,tensile test,Paper Testing Instrument

Name : paper cup tube compressive strength tester,Paper testing instrument paper gsm tester/ bursting strength tester,paper testing instrument

Display : LCD,Digital display

Customized Support : OEM ODM

Usage : Paper Testing Instrument

Features : High precision, easy operation, reliable performance

Controller : PLC (programmable logic controller)

Drop Test : Corners, edges , faces of sample

Display Method : digital display

Producer : guangdong China(mainland)

Type : HD-A544

Test Cycles Setting : 4 digits pre-set counter

Drop Height Range : 400-1500mm

Load Cell : 4 load cell for highest accuracy

Report Output : Mini-printer, thermal printing

Model : Microcomputer Control

Measuring Accuracy : 0 . 001

Drive Mode : power-driven

Pressure : 4 to 8 Mpa

Measurement Range : 0~199

Design Standards : ASTM D646, JIS P8124, QB / T 1671

Size : 600 x800x1500mm appearance

Fence Height : 1000 mm

Max Drop Weight : 150 Kg

Printing Pressure : 0 ~ 700N

Contact Now

EQUIPMENT DETAILS OF 5055-HD ERIC RESIDUAL INK TESTER

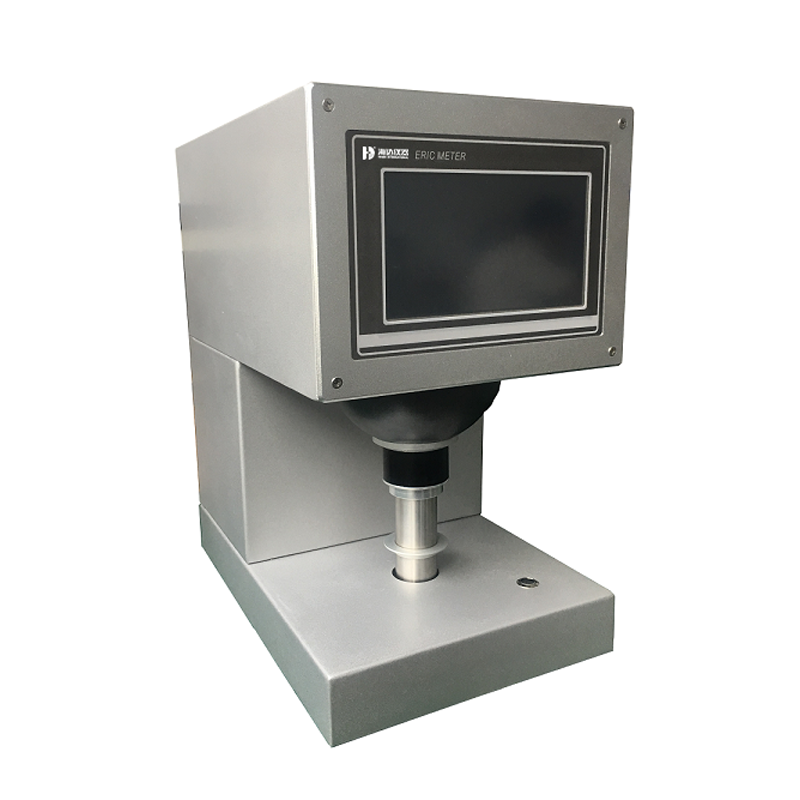

5055-HD ERIC Residual Ink Tester for Paper Packaging Testing
PRODUCT DESCRIPTION

This instrument is used to test the residual ink content in recycled pulp and paper.

DESIGN STANDATD

GB/T20216-2016,ISO22754,TAPPI T567pm-1997

FEATURES
  • ARM processor to ensure the speed and accuracy of control and calculation;
  • Front and back test, automatic calculation;
  • Using 7-inch high-resolution TFT color touch screen, easy to operate.
TECHNICAL PARAMETERS
Item Description
Model 5055-HD
Display 7 inch color touch screen
Wavelength (950±5)nm
Zero drift ≤0.1
Indication drift ≤0.1
Indication error ≤0.3
Repeatability error ≤0.1
Working Environment Temperature(10~35)℃, Humidity≤ 85%
Dimensions(L*W*H) 370*260*425 mm
Net Weight About 12kg
Power Supply AC(100～240)V,(50/60)Hz 50W
STANDARD FEATURES

The Introduction of Haida
Haida products are extensively utilized across diverse industries including paper goods, packaging, ink printing, adhesive tapes, bags, footwear, leather goods, environmental protection materials, toys & baby products, hardware, electronics, plastics, and rubber. They are equally suitable for all research institutions, quality inspection agencies, and academic fields. Our products comply with UL, ASTM, JIS, GB, and ISO standards.

5055-HD ERIC Residual Ink Tester for Paper Packaging Testing 5055-HD ERIC Residual Ink Tester for Paper Packaging Testing 5055-HD ERIC Residual Ink Tester for Paper Packaging Testing
