Somerville Sieve Content Analyzer HD-P001 for Pulp Testing

Name: Somerville Sieve Content Analyzer HDP001 for Pulp Testing
Brand: Haida
Price: 1 USD

China Somerville Sieve Content Analyzer HD-P001 for Pulp Testing factory

Brand Name : Haida

Model Number : HD-P001

Certification : CE、ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 300 Sets per Month

Delivery Time : 20 days after order confirmed

Packaging Details : each set protected with resin fiber and PP film, then put into Strong wooden case with operation man

Function : compression test,Paper Tube Compressive Strength Test,Burst tester,tensile test,Paper Testing Instrument

Name : paper cup tube compressive strength tester,Paper testing instrument paper gsm tester/ bursting strength tester,paper testing instrument

Display : LCD,Digital display

Feature : easy to operate

Operation Method : Automatic

Product Type : Testing Instruments

Protection Device : Induction type protection device

Control : PLC control

Sensing Method : Pressure Transmitter

Stop : Stop test

Force Resolution : 1/500000 of the maximum test force fs

Sample Size : 100(L)×63(W)mm

Dropping Height : 300mm-1500mm

Vibration Mode : reciprocating

Test Cycles Setting : 4 digits pre-set counter

Contact Now

EQUIPMENT DETAILS OF HD-P001 SOMMERVILLE SIEVE CONTENT ANALYSATOR

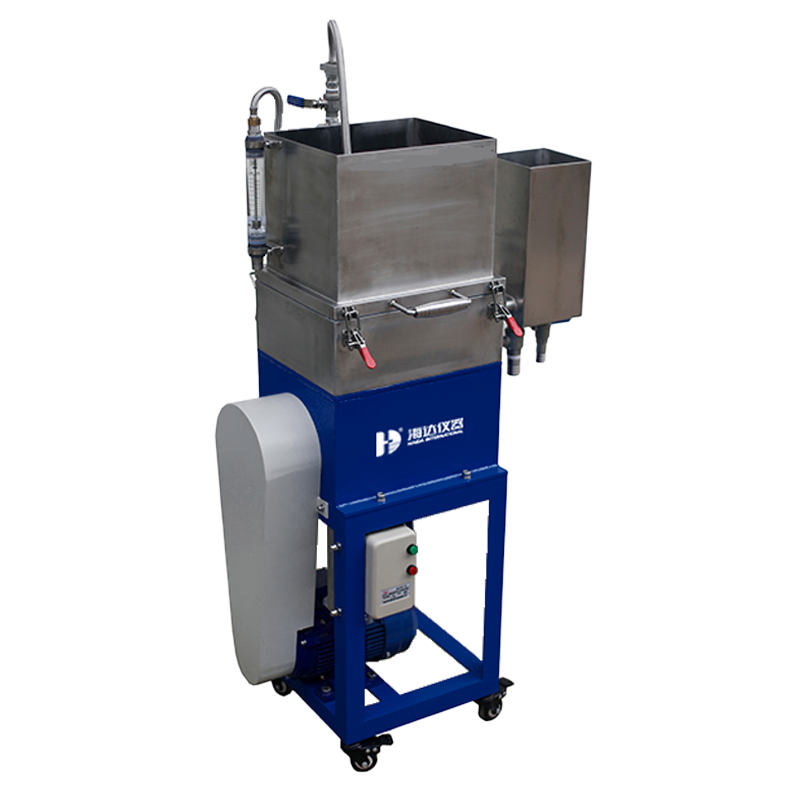

Somerville Sieve Content Analyzer HD-P001 for Pulp Testing

APPLICATION

This machine is a laboratory-specific pulp screen (Somerville type equipment), which separates the large sticky matter, plastic, sediment, iron filings and other impurities in the pulp through the up and down vibration of the screen plate. Check and quantify.

STANDARD TAPPI 275

STANDARD FEATURES

Item	Description
Sieve plate size	307mm×268mm
Screen slit	length 45 mm, width 0.15 mm
Specification of sieve plate sieve slit	0.15mm
Rubber membrane and actuation: Amplitude	3.2 ± 0.1mm eccentric actuation at 690-700 rpm
Water flow rate control	8.6 L/min. Water pressure: 1.23 Kg/cm2.
Dimensions	7204101150mm
Other optional sieve plate sieve slot specifications	0.15mm, 0.2mm, 0.3mm, 0.35mm, 0.4mm.
