5025-HD Automatic Diaper Liquid Impermeability Tester ASTM D646

Name: 5025HD Automatic Diaper Liquid Impermeability Tester ASTM D646
Brand: Haida
Price: 1 USD

China 5025-HD Automatic Diaper Liquid Impermeability Tester ASTM D646 factory

Brand Name : Haida

Model Number : 5025-HD

Certification : CE、ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 300 Sets per Month

Delivery Time : 20 days after order confirmed

Packaging Details : each set protected with resin fiber and PP film, then put into Strong wooden case with operation man

Design Standards : ASTM D646, JIS P8124, QB / T 1671

Operating Method : Microcomputer Control

Minimum Readout : 0.1

Dropping Deviation : ±10mm

Load Resolution : 1/250,000

Testing Standards : ISO, ASTM, TAPPI

Drop Test : Corners, edges , faces of sample

Rated Bending Angle : ± 7.5 ° and ± 15 °

Usage : Packaging Testing

Plywood Size : H48in * D48in

Compressed Air : 6 kg/cm2

Test Load Options : 55g, 175g, 275g

Drive Mode : power-driven

Load Cell Resolution : 1/250,000

Contact Now

EQUIPMENT DETAILS OF 5025-HD AUTOMATIC DIAPER LIQUID IMPERMEABLE TESTER

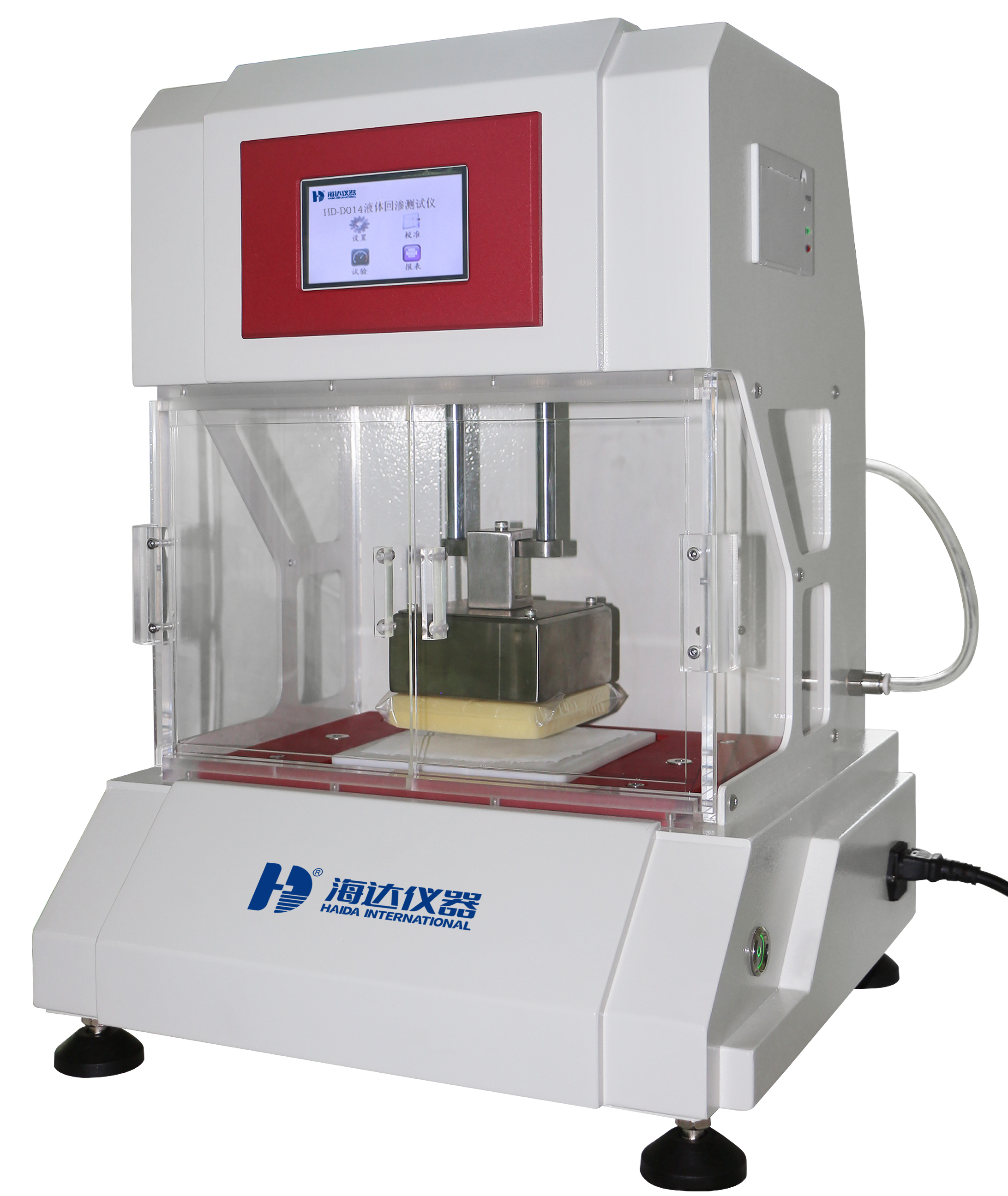

5025-HD Automatic Diaper Liquid Impermeability Tester ASTM D646

INTRODUCTION

Used to determine the amount of diaper covering material that resists the rewetting of the liquid that has penetrated

STANDARD

GB/T 24218.14 ISO 9073-14 WETBACK151.3-02

FEATURES

Touch screen control, Chinese and English menu, man-machine dialogue mode, convenient operation.
Built-in thermal printer is convenient for printing test results on site.
High-precision sensor with windshield, the test result is accurate to 0.001g.
Pneumatic components, when placing the simulated baby load, lift the sample to automatically complete the test.
Stepping motor and driver control to ensure that the speed meets the standard requirements.
The instrument has its own calibration function.

STANDARD FEATURES

Technical Index	5025-HD
Simulated baby load weight and size	4000g±20g (10x10cm)
Test range and accuracy	300g/0.001g
Testing speed	5cm/(5±1)s
Placement and dwell time can be set	1~999s
Tray size	170x170mm
Dimensions	Approx:430 x 410 x 540 mm (LxWxH)
Weight	51kg
Power source	220V, 50Hz,100W
