EQUIPMENT DETAILS OF 5096-HD LUMINOUS TRANSMITTANCE HAZE METER

Brand Name : Haida

Model Number : 5096-HD

Certification : CE,,ISO

Place of Origin : China

MOQ : 1

Price : Negotiation

Payment Terms : L/C,T/T,D/A,D/P,Western Union,MoneyGram

Supply Ability : 300 Sets per Month

Delivery Time : 20 days after order confirmed

Packaging Details : each set protected with resin fiber and PP film, then put into Strong wooden case with operation man

Dimensions : 1100mm*532mm*389mm

Test Load : 50N

Test Mass : 1KG

Factory : Yes

Test Stoke : 20 to 60 mm (adjustable)

Applicable Standards : EN ISO 8442-5

Clamp Strength : 130 + 2.5N

Leverage Weight : 1KG±0.1KG

Fixture : two fixtures suitable different cutlery

Test Cyclic : 15000 cyclic (adjustable)

Heating Method : Electric heating

After-Sales Service : Online technical support and video support

Torque Rod Diameter : 10±1mm

Testing Standards : ASTM, ISO, EN, GB

Usage : For testing the quality and safety of cookware

Contact Now

EQUIPMENT DETAILS OF 5096-HD LUMINOUS TRANSMITTANCE HAZE METER

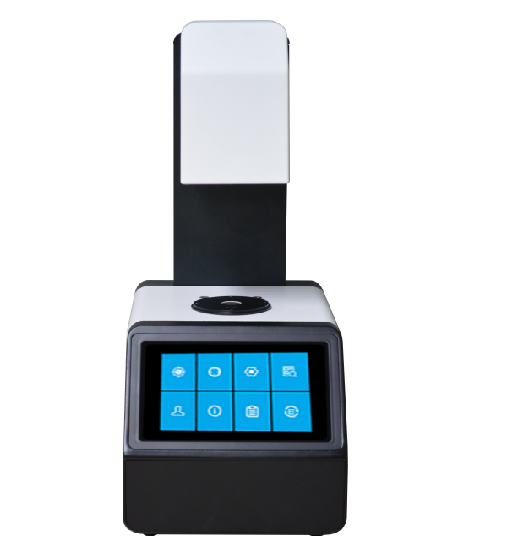

EQUIPMENT DETAILS OF 5096-HD LUMINOUS TRANSMITTANCE HAZE METER***Picture for reference

DESCIBTION

It is designed for plastic sheets, films, glasses, LCD panel, touch screen and other transparent and semi-transparent materials haze and transmittance measurement. Our haze meter does not need warm-up during test which saves customer's time. Instrument conforms to ISO, ASTM, JIS, DIN and other international standards to meet all customers measuremen trequirement.

STANDARD

ASTM D1003/D1044,ISO13468/ISO14782,JIS K 7105,JIS K 7361,JIS K 7136,GB/T 2410-08

FEATURE

1). No need to do warm-up, after instrument is calibrated, it can be used. And measurement time is only 3 seconds.

2). Three kinds of light sources A,C and D65 for haze and total transmittance measurement.

3). It can realize transmittance compensation measurement which can provide higher accuracy test result.

4). Open measurement area, no limit on sample size.

5). Instrument is with 5.0 inches TFT display screen with good human-computer interface.

6). It can realize both horizontal and vertical measurement to measure different kinds of materials.

7). It adopts LED light source whose lifetime can reach 10 years.

8). Small size and light weight which makes it much easier to carry.

TECHNICAL PARAMETER

Measuring range

0-100%

Light source

CIE-A,CIE-C,CIE-D65

Spectral Response

CIE Luminosity function Y/V

Geometry

0/d

Lighting and sample aperture size

15mm/21mm

Resolution

0.01%

Repeatability

Light transmittance: ≤ 0.1%

Haze: If H ≤ 10%, ≤ 0.05%;

If H>10%, ≤0.1%

Sample size

Thickness ≤145mm

Minimum reading

0.1%

Memory

20000 value

Interface

USB

Power

DC24V

Working environment

10~40, RH80%, (under 35,No condensation of moisture)

Storage environment

-20~50, RH80%, (under 35, No condensation of moisture)

Machine size

310 x 215 x 540mm

Optional

Fixture, haze standard plate, 5/7/10mm Custom Made Aperture
